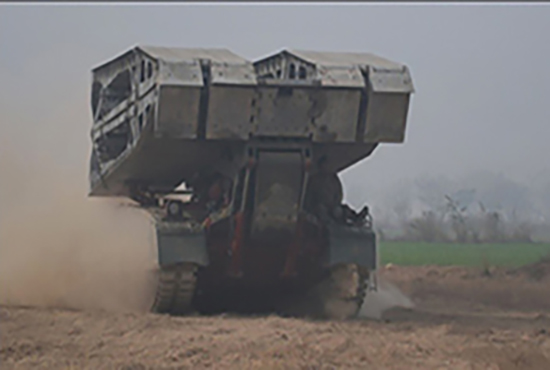

Description.   The Armoured Vehicle Launched Bridge (AVLB) comprises of a foldable type 13.5 meter span aluminum alloy and steel bridge locked to a launching mechanism installed on M47M turretless tank. This launching mechanism is operated by 13 hydraulic cylinders controlled within the tank.

Specifications

• Length of bridge                            -           13.50 m
• Width of AVLB                               -           4.00 m
• Height of AVLB                             -           3.6 m (folded)
• Weight                                           -           52 Tons
• Bridge weight                                -           7 Tons
• Launching/ retrieving time             -           3 minutes
• Load classification                         -           Cl-60

• Group                                            -           A-Group
• Project Officer                               -           Lt Col Pir Shuja Ul Mulk

Details

• Name of Proj (as per contract)      -           Indigenous Development of Armoured Vehicle Launched

Bridge (AVLB)

• Contract No.                                  -           27/48/84/MV-8A
• Prototype / Series                         -           Series
• Firm                                               -           Pak Railway Wksp Lahore
• Date of Contract                            -           15 May 85

• Date of completion                        -           Jan 87

• Sponsor                                         -           Eng Dte, GHQ

• Cost per unit                                  -           Rs. 4.98 Mn
• Total Qty / Total cost                     -           6/ Rs 29.88 Mn
• Saving                                           -           Rs. 45.57 Mn
• Time taken to dev of proj              -           2 Years
