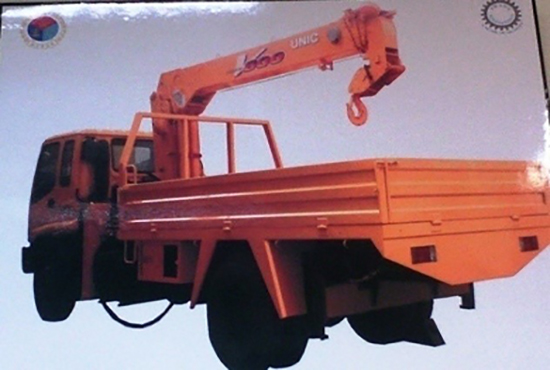

Description. UNIC V-800 series crane having 5 ton capacity is mounted on ISUZU Truck Chassis model FTR 33K (4 x 2). The equipment can lift a load of 5 ton and also carry the same in its tail body.

Specifications

• Weight lifting capacity       -           4500 - 6000 kg at 3 - 4 m radius
• Working radius                  -           2.5 - 10.0 m
• Boom sections                  -           03 section fully hydraulic telescopic type

• Winch
• Swing                          -           Hydraulic operated, fully 360°
• Hydraulic motor with speed reduction gear provided with hydraulic lock system/ mechanical brake.
• Out riggers 4 x out riggers hydraulically extendable and operated to bear maximum load for the crane.
