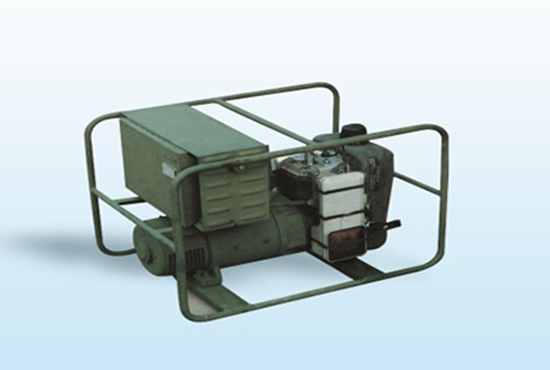

Description.  It is portable charging set with a single cylinder air-cooled petrol engine and a DC generator

Specifications

• Engine                                           -           Sachs stamo ST 151
• Output at 3000 rpm                       -           3.01 KW (4.02 HP)
• DC generator rating                      -           1500 W
• Voltages/ current output                -           35 V/ 43 A
• Speed                                            -           2500 to 3500 rpm

Special Features

• The engine can be started manually through starter pulley with rope.
• Single cylinder 2 - stroke petrol engine is used to drive the generator.
• Voltmeter and ammeter are provided.
• Engine speed can be controlled manually.
• Fuel tank capacity is about 2.4 liters.
• Flexible exhaust pipe with silencer is attached to reduce the noise.
• More than eight batteries can be charged at a time.

• Group                                            -           Sp &QC Gp
• Project Officer                               -           Lt Col Pir shuja-ul-Mulk Lt Col Rana Fiaz Haider

Details

• Name of proj (as per contract)      -           Charging set 1500 watt
• Contract No                                   -           27/51/85/Cont-I/MV-8A
• Prototype / Series             -           03 P/type on No cost basis Series
• Firm                                               -           M/s Siemens
• Date of contract                             -           27 Jun 85
• Date of completion                        -           Jun 86
• Sponsor Dte                                  -           Signal Dte GHQ
• Cost per unit                                  -           Rs. 16,200/-
• Total Qty / Total cost                     -           300 set Rs 4,860,000/-
• Saving                                           -           Rs 19,440,000 (4,860,000 x 5 - 4,860,000)
• Time taken to dev project              -           01 year
