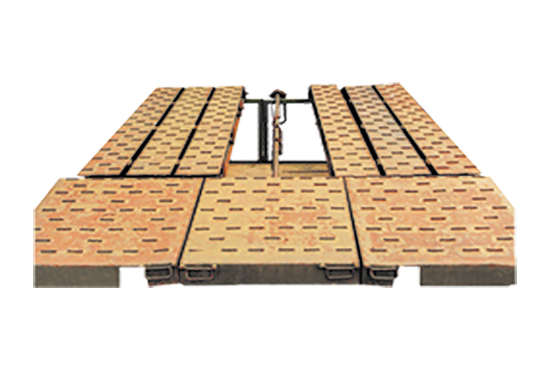

Description.   Used for loading/ unloading of wheeled and tracked vehicles onto/ from railway carriages where appropriate railway sidings are not available. Being modular in design makes it easier to manually carry and assemble at site.

Specifications

• Length                                           -           10/ 12 ft  (3.10 m) and 20 ft  ( 6.09 m)
• Width                                             -           3.635 m
• Height                                            -           1.2 to 1.34 m
• Maximum weight of any                -           325 kg

module

• Load classification                         -           60 Ton

• Group                                            -           A-Group
• Project Officer                               -           Lt Col Syed Amir Raza

Details

• Name of Proj (as per contract)      -           Railway Loading Ramps
• Contract No.                                  -           27/172/2000/MV-8A/7-89/DP-9/2000
• Prototype / Series                         -           Series
• Firm                                               -           M/s AMCO Engg, Rwp

• Date of Contract                            -           27 Jun 2000
• Date of completion                        -           Jun 2001

• Sponsor                                         -           AC Dte, GHQ

• Cost per unit                                  -           Rs.  0.339 Mn
• Total Qty / Total cost                     -           21 / Rs.7.12 Mn
• Saving                                           -           Rs. 21..36 Mn
• Time taken to dev of proj              -           1 x Year
