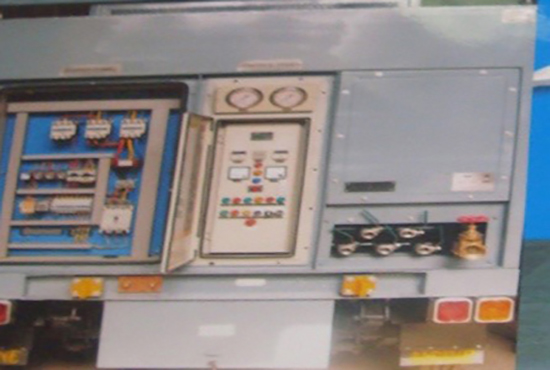

Description. High Pressure Air Compressor plant comprising of four staged high pressure, dual drive (engine and electric motor driven system), air cooled and mobile semi automatic compressor is mounted on a four wheeled trailer. It is used to charge air in PN ships.

Specifications

• Prime mover/ drive system           -           Dual drive system - engine driven / 3 phase                                                                               electric motor
• Engine                                           -           6 x cylinders diesel engine water cooled                                                                              having  135 HP
• Electric motor                                -           3 phase electric motor of 55 KW
• Max pressure                                -           350 bar
• Working pressure                          -           275 bars
• Frequency                                     -           50 Hz
• Operating voltage                          -           400 V AC
• Control voltage                              -           24 V AC
• Suspension                                   -           Road spring/ shock absorber combination
