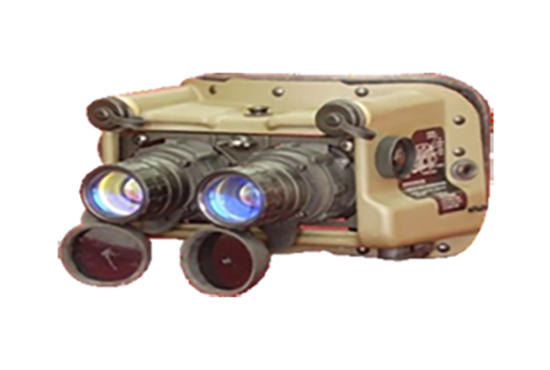

Advanced Design Night Vision Goggle (Equivalent To AN/PVS-5C)

Description: This is most advanced high performance night vision goggle available anywhere in the world market. The high performance goggle uses two 18mm micro channel wafer type image intensifier tubes whose performance exceeds that of all other tubes of similar types. Its matched precision optics is faster than those found on any night vision goggle. Additionally the high performance goggle is exceedingly simple to operate. It is powered by two inexpensive “AA” pen light batteries, which are available even in the most remote areas of the world.



Special Feature:

  • 18mm I.I  Tube
  • Light weight
  • 40O field of view
  • Unity magnification
  • Uses universally available AA batteries
  • Head mounted hands free operation
  • Automatic brightness control
  • Auxiliary miniature IR illuminator
  • Performance exceeds US/NATO military standards





Technical Specification:

  • Magnification

Unity

  • Field of view

40O

  • Resolution

27 lp/mm (Min)

  • Image Intensifier

18mm

  • Objective Focusing

25 m to Infinity

  • Eyepiece Diopter Setting

+2 to –6

  • Brightness Gain

2000 (Nominal)

  • Power Supply

2.7VDC

  • Battery Life

15 hrs

  • Auto Brightness Control

Available

  • Weight

0.85 Kg

  • Dimensions

L 17.3cm  x  W 16.5cm  x  H 11.7cm

  • Storage Temperature

+65Oc to –57Oc

  • Operating Temperature

+45Oc to –45Oc
