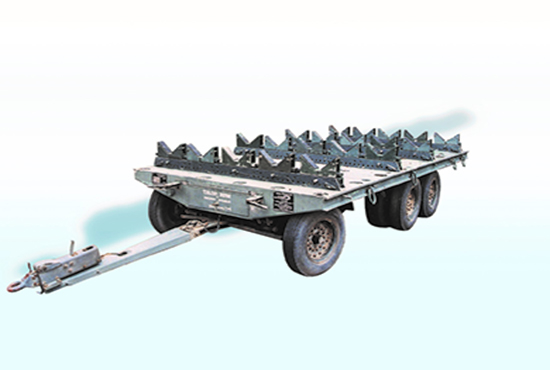

Description. Pak Armament Trailer PAT-01 is used for safe carriage of munitions weighing upto 25000 lbs within the Air Base. The trailer is a ten wheels flat bed earner capable outran sporting any munitions within the load, dimensional and stability limitations. The accessories furnished with the trailer are general purpose type items. Special adapters accessories are required during loading/ transportation of aircrafts munitions.
Specifications
- Overall dimensions:
- Length - 196 inches
- Width - 91 inches
- Height - 30 inches from ground
- Wheel base - 110 inches
- Ground clearance - 10 inches
- Turning radius - 175 inches
- Capacity:
- Trailer - 15000 pounds
- Tie down rings top deck - 10000 pounds
- Tie down rings side deck - 25000 pounds
- Group - B-Group
- Project Officer - Lt Col Iftikhar Hussain
Details
- Name of proj (as per contract) - Indigenous Dev of PAK Armament Trailer – 01 (PAT-01)
- Contract No - 27/365/MHU/06/MV-8A/(7-156/DP-9)/2006
- Prototype / Series - Prototype
- Firm - Amco
- Date of contract - 27 Jun 2006
- Date of completion - Dec 2006
- Sponsor - AHQ
- Cost per unit - Rs. 2.350 Mn
- TotalQty / Total cost - 03 /7.05 Mn
- Saving - 35.25 Mn
- Time taken to dev of proj. - 6 Months
