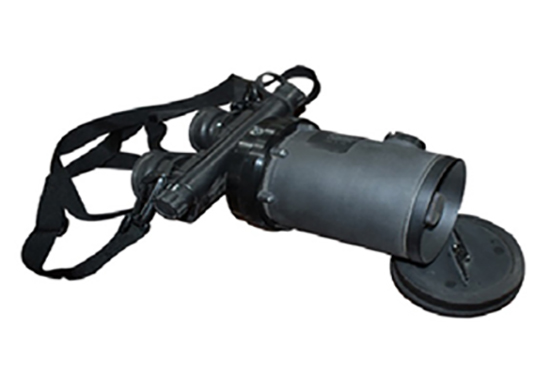

Description: This is light-weight, hand held, passive night vision devices for general purpose long range observation and surveillance. The 18mm 2nd generation, high performance image intensifier tube incorporated in the system creates almost “Day Light” viewing conditions to facilitate the observation and spot-lightning the target position during night time. This binocular has a 95mm focal length objective lens and offers 4x magnification. The units have been engineered to minimize weight & cost without sacrificing performance and quality. It has a rugged construction and is easy to operate and maintain. Specific applications include long range night observation and surveillance for tank commanders, forward area observers, border patrols and special forces.
Special Feature:
- Automatic Brightness Control
- Individual eyepiece focus
- Day light cover
- Easily tripod mounted
- 4.0 x magnification & 10.5o FOV for GP/NVB-4A Equivalent
- 6.0 x magnification & 6.5o FOV for GP/NVB-5A Equivalent
- Uses Standard “AA” batteries
- Produced as per US/NATO Military Standards
Technical Specification:
|
4.0x (Nominal) |
|
10.5o |
|
0.4 mrad |
|
18mm Second Gen |
|
10m to Infinity |
|
+2 TO –6 |
|
1000 |
|
2 to 3 VDC |
|
25 Hours (Nominal) |
|
Available |
|
1.13 Kg |
|
L 225mm X W 145mm |
|
+65 oC to –45 oC |
|
+45 oC to –30 oC |
