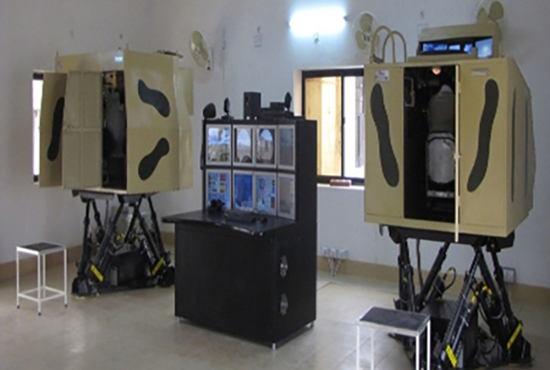

Description. A dynamic integrated training simulator of tank is a crew trraining simulator  consisting of mock ups of driving and fighting compartments mounted on 6 degree of freedom motion platforms. Electronically integrated with each other and controlled by main simulator software in its instructor console.

Specifications.

• Power consumption     -         Less than 16 kW.
• Power supply               -         220 Volt ± 10%, 50 Hz.
• Initialization time          -         Within 10 mins.
• Duration of break         -         Max 30 mins.
• Controls                       -         PC based
• Type of Platform          -         Electromechanical
• Degree of freedom      -         6 (roll, pitch, yaw, heave, surge and sway)
• Temperature              -         10-40 degree, centigrade (close to actual           temperature within the tank).
• Average service life     -         Not less than 5000 hrs.
• Controls                      -         PC based
• Network            -        Option to interface more than one simulator through                                                           a network.
