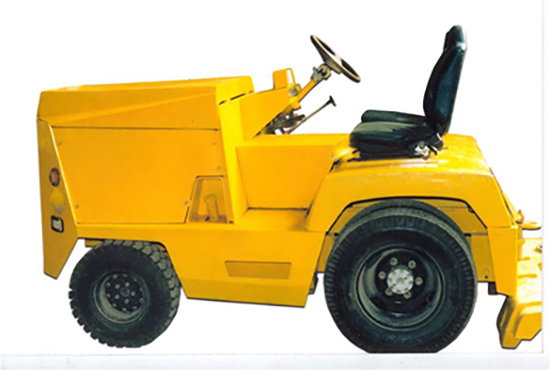

Description. Tow tractor is four wheel, self propelled, towing device which consists of a chassis on which a engine, transmission, driver compartment, dash board and fuel tanks are mounted. It also has hydraulic assisted steering on front wheels.

Specifications.

• Max Output                       -           60 KW at 2400 to 2600 RPM
• Transmission                     -           Full automatic
• Clutch                                -           Single type
• Draw bar pull                     -           2 Ton

• Steering
  • Recalculating ball type. Hydraulic assisted (RHD)
  • Manual front wheel steering and all wheel drive

• Suspension                       -           Coil spring with trailing arm Type/ leaf Spring
• Front / Rear Axle               -           Type
• Shock Absorbers               -           Telescopic type

• Brakes
  • Service                        -           Hydraulic, 4 wheel disc brakes. Dual circuit type. Brake                                       system provided with brake malfunction indicator light.

• • Parking                        -           Mechanical

• Max Speed Without / With-           20 to 25 KMPH / 10 to 12 KMPH

Payload

• Electrical System              -           12 Volt DC single battery / 24 V DC dual battery.

• Cabin                                 -           Fiber Sheet.

• Towing Hook                     -           Rear towing hook with multiple options for towing aircraft.
