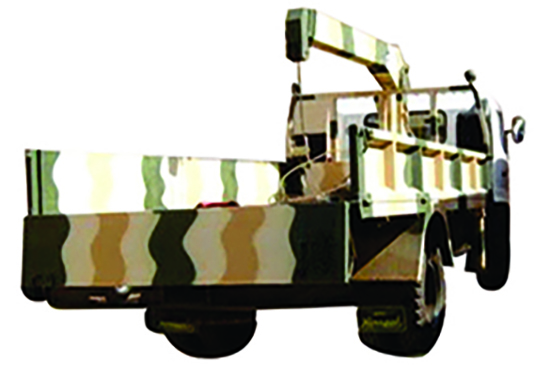

Description. Used for loading/ un-loading of operational and other general purpose loads at air bases and depots.
Specifications
- Vehicle - Hino Truck chassis (4x2) model FG1JKPB with
genuine PTO
- Crane
- Boom type - Telescopic
- Boom section - 2/ 3
- Crane lifting capacity - 3 ton at 3.5 meters
- Swing/ slewing angle - 360o
- Winch - Hydraulic motor driven
- Out riggers - Manually operated sliders and hydraulically
operated jacks
- Hydraulic system
- Hydraulic pump - Single gear pump
- Hydraulic motor - Axial plunger type for winch and swing
- Control valve - Multiple control valves with integral safety
feature
-
- Safety devices - Load meters, load indicator, safety hook
- Group - A-Group
- Project Officer - Lt Col Syed Zaigham Hafeez
Details
- Name of Proj (as per contract) - Bomb Lift Truck
- Contract No. - 27/331/BL/MV-8A/(7-140)/DP-9/2005
- Prototype / Series - Prototype
- Firm - M/s Swana Islamabad
- Date of Contract - 28 Jun 2005
- Date of completion - May 2008
- Sponsor - Dte of Munitions, AHQ
- Cost per unit - Rs. 1.12 Mn
- Total Qty / Total cost - 1
- Saving - Rs. 1.545 Mn
- Time taken to dev of proj - 3 years
