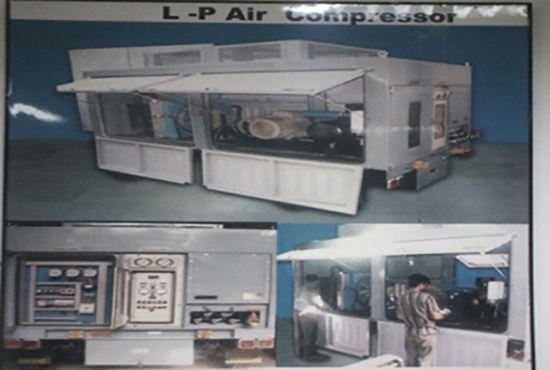

Description. Low Pressure Air Compressor Plant (electric motor driven) comprising of four staged high pressure, electric motor driven system, air cooled and mobile semi automatic compressor, mounted on a four wheeled trailer. It is used to charge air in PN ships.
Specifications
- Type - Mobile and electric driven
- Actual free air delivery - 25-26 m3/ min
- Normal working pressure - 12-14 bar (175-200 psi)
- Minimum/ maximum uploading pressure - 175 psi
- Compression stages - 1
- Air Receiver capacity - 164 liter
- Compressor oil capacity - 80 liter
- Air outlet temperature - 90°C
- Typical oil contact of compressed air - <3mg/ m3
- Outlet valve configuration - 1 x 2.5
- Maximum ambient temperature - 50°C
- Minimum starting temperature - 10°C/ - 25°C
- Maximum altitude - 3000 m
