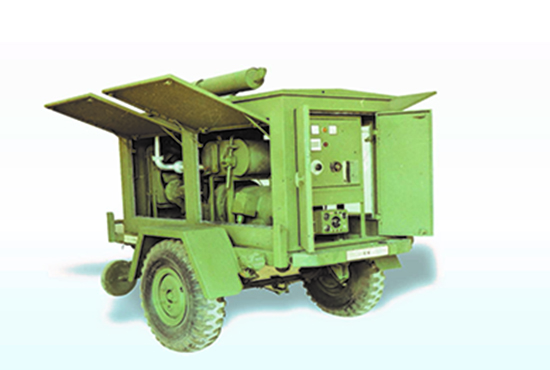

Description. It is indigenously developed trailer which is handy, less expensive and appropriate for mounting 12.5 KVA diesel generator set.
Special Feature
- Trailer
- Vehicle for towing - 2.5 Ton or 3 Ton
- Ground clearance - 365 mm
- Length of trailer - 3720 mm
- Width of trailer - 1850 mm
- Height of trailer - 2010 mm
- Trailer floor dimension (L xWx H) - 2200 mm x 1000 mm x 830 mm
- Tyres - 8 ply 9.00 x 16
- Brake - Mechanical
- Size conforming to the dimensions of the generator set
- The generator is directly mounted on the frame of trailer without any skid
- Low bed of trailer facilitate the operation of the generator by operator standing on the ground instead of climbing in the trailer
- Easy to transport and to conceal under battle field conditions
- The trailer can easily be towed behind a vehicle
- Group - Sp &QC Gp
- Project Officer - Lt Col Pir Shuja-ul-Mulk
Details
- Name of Proj (as per contract) - Trailer for Generating set 12.5 KVA
- Contract No - 27/49/85/Cont-II/MV8A
- Prototype / Series - 01 Prototype on No cost No obligation basis Series
- Firm - M/s Trailer Dev Corporation Karachi
- Date of contract - 26-6-1985
- Date of completion - Jun 1986
- Sponsor Dte - Signal Dte GHQ
- Cost per unit - Rs. 36,000/-
- Total Qty / Total cost - 100 No Rs 3,600,000/-
- Saving - Rs 14,400,000/- (3,600,000 x 5 - 3,600,000)
- Time taken to dev project - 01 year
