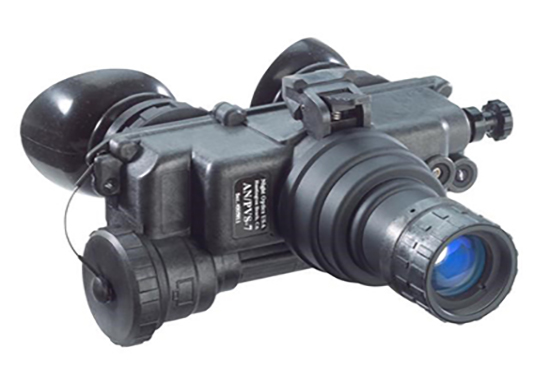

Night Vision Goggle

(Equivalent  To  AN/PVS-7D)

Description: It is a high performance night vision goggle. The design is based on single image intensified tube. A wide variety of I.I. Tubes such as Gen II (Plus), Super Gen®, Hyper Gen® or any Gen III series can be used. This single tube NVGs are primarily designed for ground based armed forces. It enables them to conduct critical as well as routine military missions even during the darkest for the night. It is very light weight system and is designed for long wearing comfort. The single tube goggle can be hand-held helmet mounted for head harness mounted for “Hands-Free” operation.

Special Feature:

• Binocular Viewing
• Utilizes Single I.I. Tube
• Light Weight (580g)
• Utilizes AA Batteries
• Considerably Cheaper as Compared to Twin Tube Night Vision Goggles

Technical Specification:

• Magnification                               Unity
• Field of view                                40^O
• Resolution                                   1.15 cy/mrad
• Image Intensifier                         18mm (D-4, XR-5, 3^rd Gen)
• Objective Focusing                      25cm to infinity
• Eye piece Diopter Setting             +2 to -6 Diopter
• Power Supply                              2.1 to 3VDC
• Battery Life                                 25 hrs (Nominal)
• Weight                                        580 gm
• Dimension                                   L 155mm x W 175mm x H 55mm
