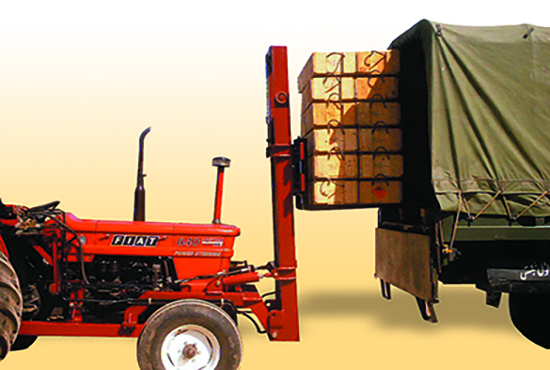

Description.  A detachable 1 Ton Fork Lift is installed on front of tractor FIAT 640 for material handling, vertical stacking and transportation in the field.

Specifications.

• Lifting capacity                             -           1000 kg
• Maximum lift height                     -           3 m
• Lift/lowering speeds                     -           0.1/0.2 m/sec
• Fork Length/spread                     -           0.9 m/0.2-0.95 m
• Tilt angle of (forks)                       -           (+) 12^o / (-) 6^o
• Attachment/detachment              -           20 minutes
