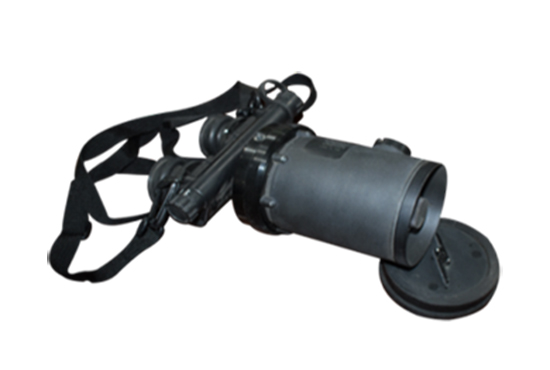

Description: This night vision binocular equivalent to GP/NVB-5A has a 155mm focal length objective lens and provides 6x magnification. The eyepiece can be individually focused to accommodate various eye prescriptions. A built-in objective focus mechanism allows the operator to refocus on a new target quickly. The units have been engineered to minimize weight & cost without sacrificing performance and quality. It has a rugged construction and is easy to operate and maintain. Specific applications include long range night observation and surveillance for tank commanders, forward area observers, border patrols and special forces.
Special Feature:
- Automatic Brightness Control
- Individual eyepiece focus
- Day light cover
- Easily tripod mounted
- 4.0 x magnification & 10.5O FOV for GP/NVB-4A Equivalent
- 6.0 x magnification & 6.5O FOV for GP/NVB-5A Equivalent
- Uses Standard “AA” batteries
- Produced as per US/NATO Military Standards
Technical Specification:
|
6.0 X (Unity) |
|
6.5O |
|
0.25 mrad |
|
1000 |
|
25 cm to Infinity |
|
10-6 to 1fc |
|
2.0 to 3.0 VDC |
|
15 hrs at 25OC |
|
AA 3.5 VDC |
|
52 to 72 mm |
|
+2 to -6 diopter |
|
25 mm (min) |
